Start Guide

Publication　Mar. 19, 2025　｜　
Last Updated　Mar. 25, 2025

What is XYN Motion Studio?

XYN Motion Studio is an integrated application leveraging the motion capture tool "mocopi®." Supporting capture, timeline editing, and utilization, XYN Motion Studio streamlines the production process by making motion production easier.

XYN Motion Studio app structure

“XYN Motion Studio” contains capture function equivalent to the “mocopi PC”.
This guide on our website explains the main operating methods and specifications of the “Motion Edit”.

intro_en

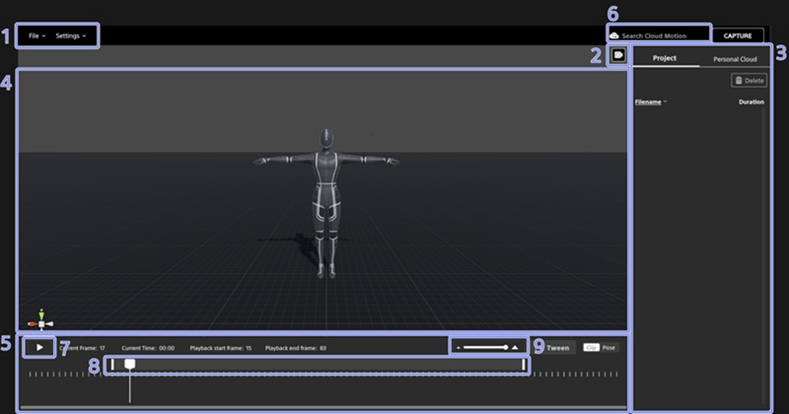

UI Overview

XYN Motion Studio アプリ画面

Top Menu
Reset Camera button
Side Panel
3D Work area
Timeline
Search area
Play/Stop button
Playback range selector
Scale slider

Launching App

Initial startup

Download "XYN Motion Studio" from the Microsoft Store.
Select the "XYN Motion Studio" icon from the Start menu to launch the application
Select your place of residence and click on [Start].
Read the displayed message. If you agree, select the checkbox and click on [Proceed].
Click on [Sign In].
An external browser will launch, and the Microsoft account sign-in screen will appear.
Log in with a personal Microsoft account. If you‘re already logged in, simply select the corresponding account. Note: Organization accounts, such as those for work or school, cannot be used to log in.
After successful login, you can close the browser and return to the App.
Click on [Start Creating].

Second time and after

Select the "XYN Motion Studio" icon from the Start menu to launch the application
Click on [Sign In].

Specifications and Operating

For the specifications of the app, please see here:
Specifications of XYN Motion Studio

For instructions on how to operate the app, please see here:
- App Operations: Basic Operations
- App Operations: Automatic Interpolation (Tween)
- App Operations: Timeline
- App Operations: 3D Camera and Avatar
